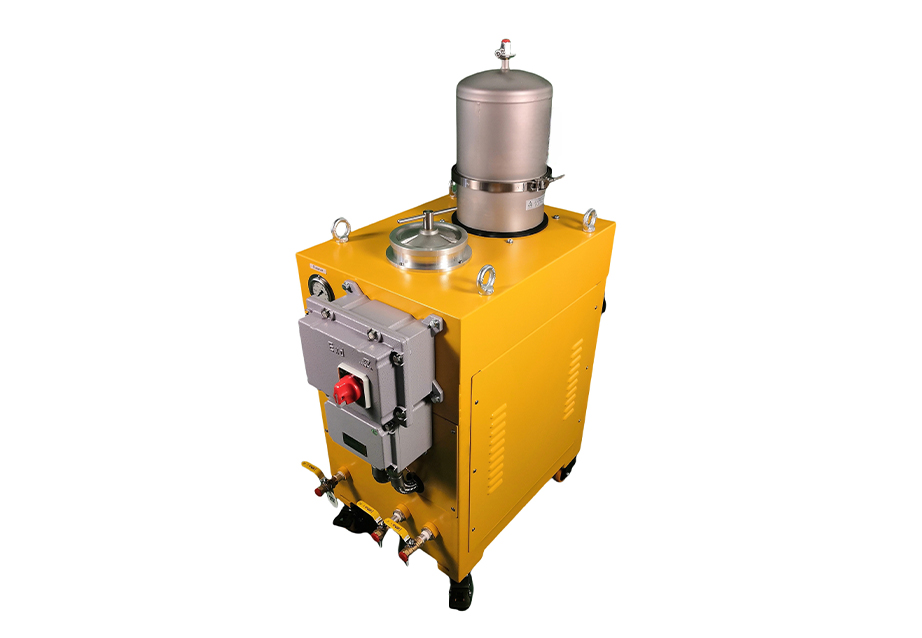

Explosion-proof precision oil purifier

share to:

This series of products uses high-quality carbon steel to make the overall frame of the equipment, with plastic spraying treatment on the surface, anti-corrosion and oil-proof. The bottom of the frame is equipped with high-quality casters with brakes. The equipment has a neat appearance, occupies little space, and is easy to move.
The core purification tank is made of stainless steel 304, equipped with high-precision filter elements, and has excellent filtering effect.
The electrical system uses high-quality explosion-proof and anti-corrosion plug-in devices, explosion-proof electromagnetic starters, explosion-proof motors, and high-quality gear pumps for oil inlet. The oil flow is stable, the equipment has low noise, high reliability, and the equipment is not prone to failure during long-term continuous operation.

Details

This product is specially designed for flammable and explosive industrial sites. The motor adopts explosion-proof motor, the motor start-stop switch adopts “explosion-proof electromagnetic starter”, the power wiring device adopts “explosion-proof and anti-corrosion plug-in device”, and the electrical devices are connected by flexible connecting pipes, with excellent explosion-proof performance.
Features
 This series of products is suitable for places with explosion-proof requirements.
 The product structure is compact and saves space.
 Standard high-precision filter element
 It can effectively remove various pollutants that cannot be removed by general filters.
 Remove micron-level solid impurities
 Remove moisture
 Remove oxidation and degradation products and inhibit their generation
 Remove bubbles in oil
 Reduce operating costs.

Equipment_selection_parameters

Specifications and models OURUN-KOR-104CEx OURUN-KOR-106CEx OURUN-KOR-108CEx OURUN-KOR-112CEx OURUN-KOR-120CEx
Flow(L/min) 12 18 24 36 60
Import and export diameter RC1/2 RC1 RC1 RC1 RC1 1/4
Motor power(KW) 0.75  0.75  0.75  0.75 2.2
Working voltage(V) AC380V 50Hz  Three-phase four-wire(Customizable)
work pressure(Mpa) 0.5
Debubble device Optional
Filter element model and quantity 4 6 8 12 20
Dimensions(mm) 980*454*1233 1236*454*1256 1550*454*1256 950*580*1428 1550*824*1529
weight(Kg) 118.5 139 184.5 214 400
