Oil filter truck for refueling

share to:

This series of precision refueling trucks is specially designed by our company for gas stations and other places where a large amount of oil needs to be added. The product occupies a small space as a whole, is easy to move, and has a corrosion-resistant design for the whole machine, which has high corrosion resistance.
Applicable oils: hydraulic oil, gear oil, turbine oil, insulating oil, compressor oil and other lubricating oils, etc., and corrosive oils such as phosphate ester oil and water glycol oil are also applicable.

Details

1. Features
 The whole machine adopts 304 stainless steel design, which has good corrosion resistance;
 It adopts high-power motor pump design, which has high working efficiency;
 The whole series of products have a variety of filtering precisions to choose from;

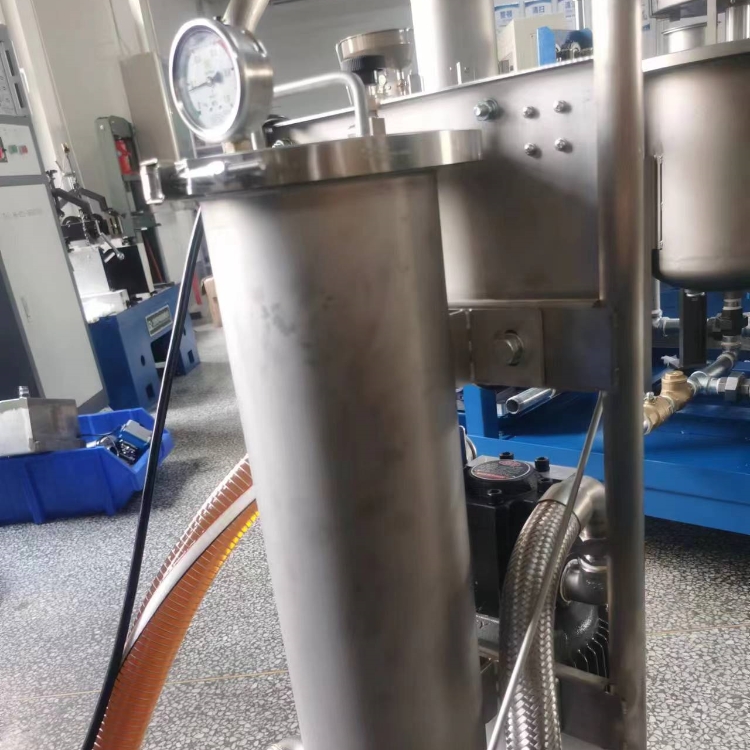

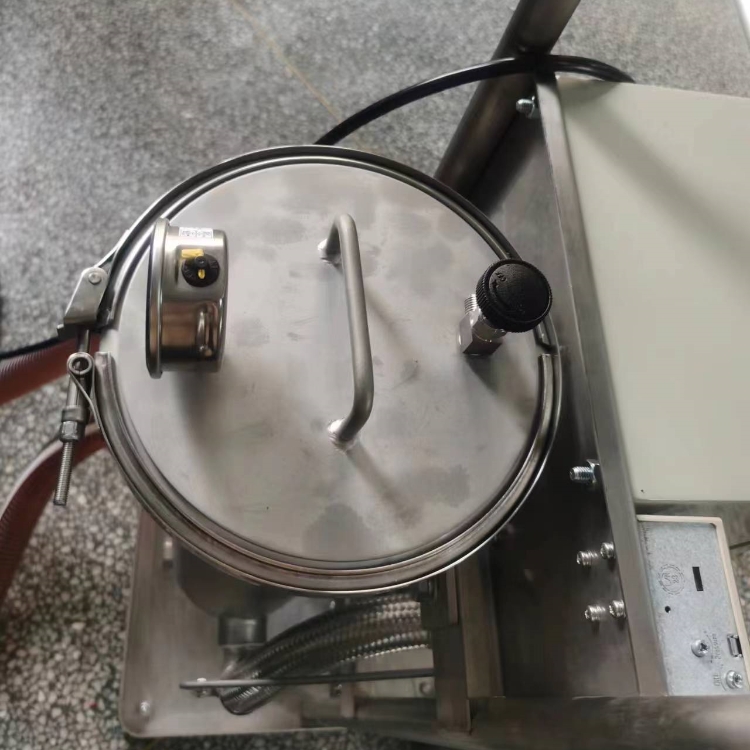

 The cover of the precision filter tank adopts V-shaped clamp locking and sealing, which is convenient for disassembly and assembly;
 The whole machine adopts a vertical structure to save storage space;
 Pure physical purification prolongs the service life of the oil;
 The filter element has a large filtering area, high dirt holding capacity and long service life;
 There is an oil collection tray at the bottom to prevent the oil from dripping on the ground and causing environmental pollution;

Main parameters

Product model

OURUN-JYL-100(20)

Motor power( Kw)

2.2

Working voltage

AC380V 50Hz 3 phase 4P

Flow(L/min)

100

Pump relief pressure

0.5MPa

Entrance and exit

Ø32

Number of filter elements used

1

Oil temperature

20-60℃

Ambient temperature

0-45℃

Overall dimensions(mm)

L670*W625*H1228

Weight(KG)

109

Note: The standard filtration precision of this product’s filter element is 20um
