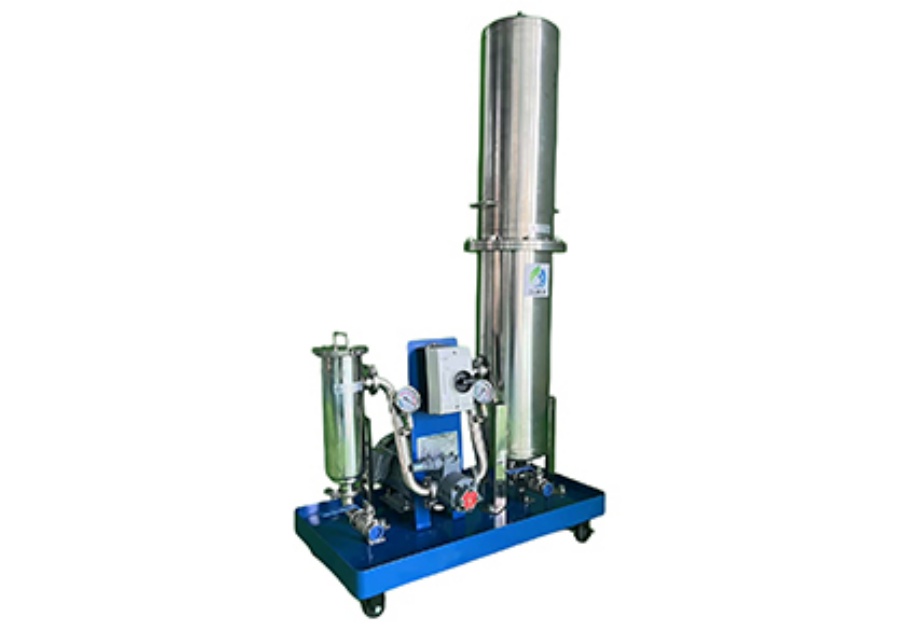

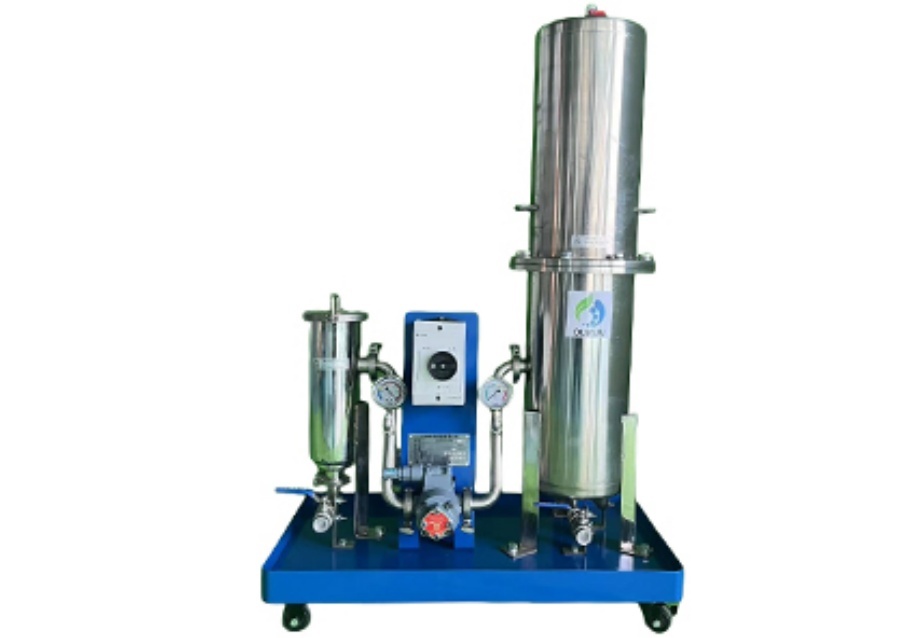

Portable oil filtration equipment

share to:

This product takes up little space and is easy to move. The core purification tank and pipeline are made of stainless steel 304, equipped with high-precision filter elements. The electrical system uses the international brand Eaton motor circuit breaker, equipped with high-quality motor integrated pump, stable oil flow, low equipment noise, high reliability, and the equipment is not prone to failure during long-term continuous operation. The product is suitable for online precision filtration of industrial oils such as equipment lubrication systems, hydraulic systems, and servo systems.

Chat Now Contact

Details Technical Parameters Related Products

Details

Technical advantages:
Use high-precision filter element
Suitable for precision filtration of various large and medium-sized equipment
Remove various pollutants that cannot be removed by general filters
1. Remove solid inclusions in general micron units
2. Remove moisture (condensed water generated by temperature difference)
3. Remove and inhibit the generation of oxides
Remove bubbles in hydraulic and lubricating oil circuits (optional configuration)
Easy maintenance

Bring benefits:
Prevent hydraulic machinery failures
Improve the reliability of mechanical equipment operation
Extend the life of hydraulic machinery
Reduce manpower and management costs
Keep oil products clean for a long time
Substantially reduce grease costs

Technical Parameters

Product model	OURUN-KOR-106C
Filtering precision	NAS1638 ≤ Level 5
Motor power( Kw)	0.75
Working voltage	AC380V 50Hz 3 phase 4 wires
Motor protection level	IP44
Flow（L/min）	18
Pump relief pressure	0.5MPa
Entrance and exit	Rc3/4
Use filter model	YSO100
Number of filter elements used	6
Overall dimensions(mm)	L760W400H1180
Weight(KG)	63
Applicable oil volume station（mᵌ）	≤5
Applicable viscosity（cst）	≤68
