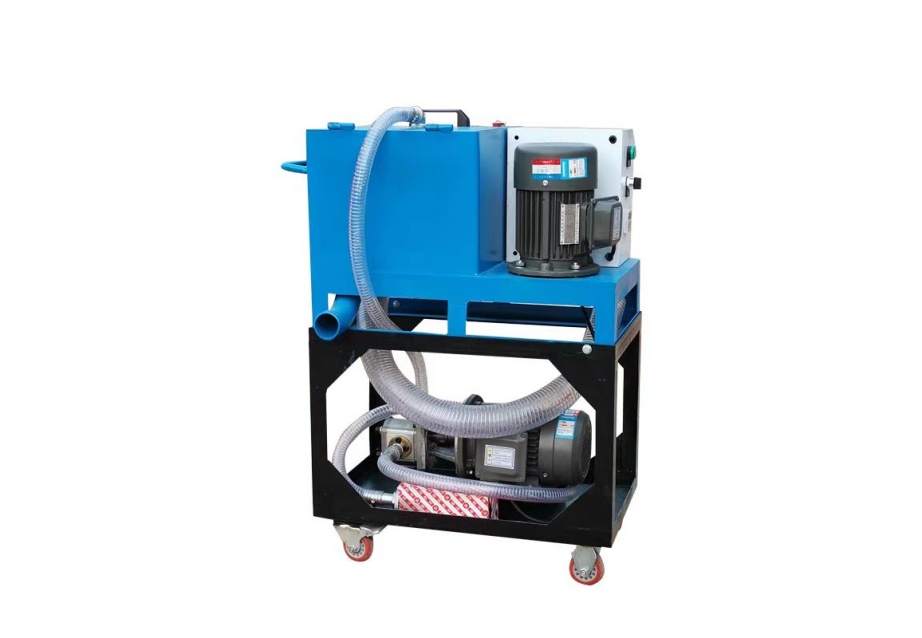

This product is designed based on the centrifugal vacuum principle and is a device that can remove solid contaminants from oil. It can be used for filtering and purifying various industrial circulating oils such as screw and nut forming machine oil, heading machine oil, thread rolling machine oil, precision grinding cutting fluid oil, hot filter furnace oil, EDM machine oil, punching machine oil, and various starting oils such as quenching liquid and quenching oil.
Technical advantages:
1: The whole machine adopts environmentally friendly automobile paint, with exquisite appearance and firm paint.
2: It adopts high temperature and high pressure resistant spring oil pipe, and the cover design is more convenient to open.
3: Thickened steel plate design, the main parts are processed by precision CNC machine tools, and the equipment runs stably.
4: It adopts national standard motor, which has sufficient horsepower and saves electricity.
5: It is equipped with time relay, and the equipment running and stopping time can be set at will.
6: It uses high-speed centrifugal principle to remove impurities in oil, with high efficiency and no consumables.
Benefits:
Prevent mechanical failure
Improve the reliability of mechanical equipment operation
Extend the service life of machinery
Reduce manpower and management costs
Keep oil clean for a long time
Significantly reduce grease costs
|
Product model |
OURUN-KORS-40 |
|
Purification effect（M） |
≤20 |
|
Egress traffic（L/min） |
≥40 |
|
Working voltage |
AC380 50Hz 3 phase |
|
Motor power |
1.5kW |
|
Work efficiency（L/H） |
500-800 |
|
Separation accuracy（M） |
30 |
|
Overall dimensions（mm） |
L750*w450*H1000 |
|
Overall machine weight（kg） |
130 |
1: Please ground the equipment effectively to avoid electric shock accidents.
2: The height of the oil outlet pipe must not be higher than the height of the oil outlet, otherwise it will increase the motor load,
burn the motor, and damage the motor.
3: The centrifugal barrel cover must be assembled tightly, otherwise the dirt will be unevenly attached to the barrel,
causing serious shaking of the equipment and damaging the equipment bearings and electrical equipment.
4: Please pay attention to the degree of oil contamination and clean the centrifugal barrel in time.
5: It is strictly forbidden to open the top cover before the equipment has completely stopped running.
