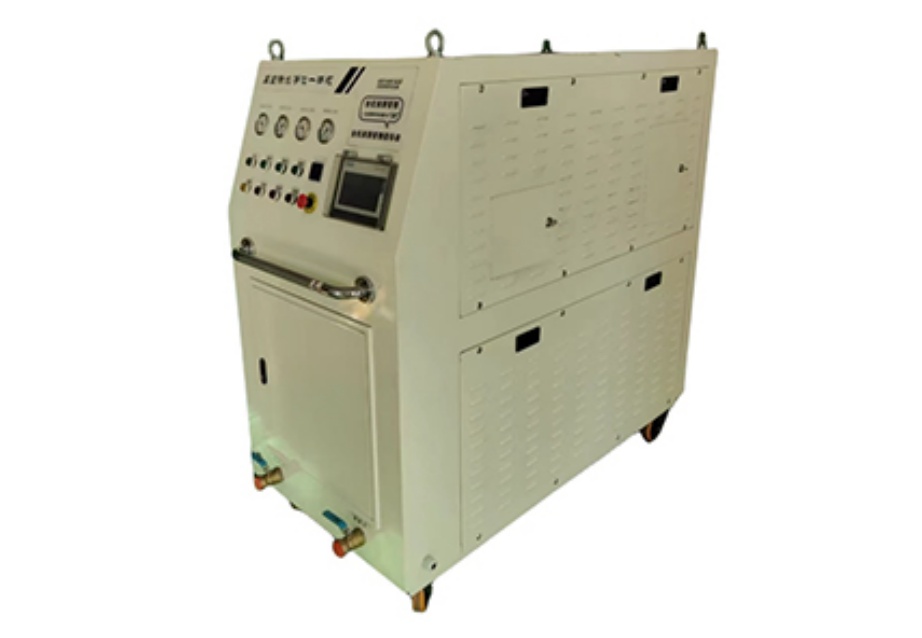

Vacuum Oil Dehydration Machine

share to:

This product is designed for the working condition of large amount of water inflow in gas station. The system passes the oil through vacuum environment, and the water is automatically gasified and discharged from the oil.
This series of products has high water removal efficiency. It is widely used in lubricating oils such as hydraulic oil, gear oil, turbine oil, transformer oil, compressor oil, etc. It is used in the working condition of large amount of water inflow in medium-sized gas station oil products such as equipment lubrication system and hydraulic system.

Details

Technical advantages:
 Water removal capacity: free water: 100%, bubbles in oil: 100%, dissolved water: 80%;
 High viscosity oil can also be easily handled, and viscosity up to 680cst can be handled;
 PLC intelligent control is adopted;
 High water removal efficiency, water content after treatment is ≤50ppm;
 Heater is optional;
 All pipelines and vacuum tanks are made of 304 stainless steel;

Bring benefits
Prevent hydraulic machinery failure
Improve the reliability of mechanical equipment operation
Extend the life of hydraulic machinery
Reduce manpower and management costs
Keep oil clean for a long time
Substantially reduce grease costs

Technical Parameters

Product model

OURUN-KORS-30C

Moisture content

≤50ppm

Voltage

AC380V 50Hz

Vacuum pump power

1.25kW

Oil pump power

suction pump 0.75kW

discharge pump 0.75kw

Flow(L/min)

30

Heater(kw)

12(Optional)

Entrance and exit

Oil inlet Rc1·1/4

Oil outlet Rc1

Adapt to viscosity(cst)

680

Overall dimensions(mm)

 1100*730*1450

weight(Kg)

240
