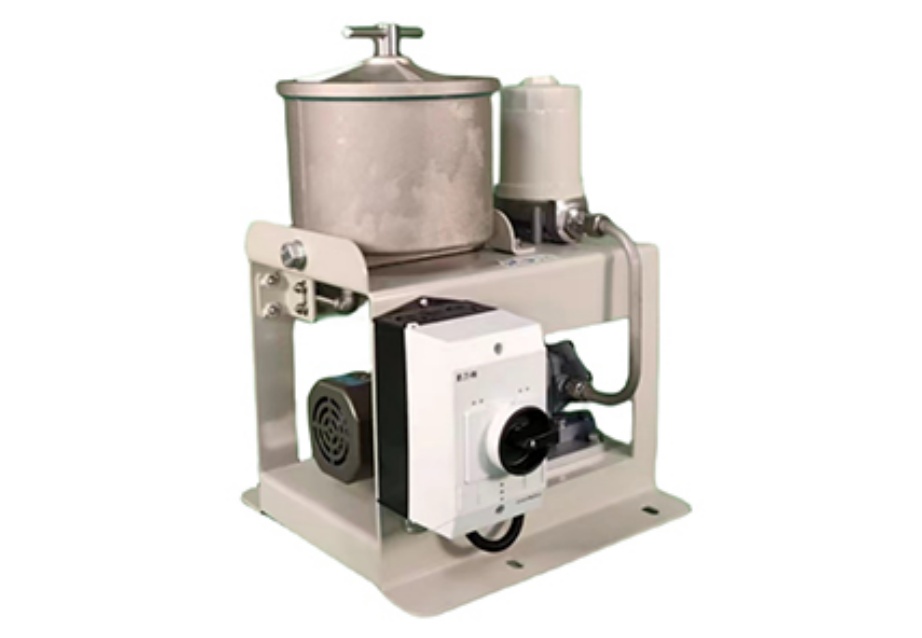

Industrial oil filtration system

share to:

This product takes up little space and is easy to move. The pipeline is made of stainless steel 304 and equipped with high-precision filter elements. The electrical system uses the international brand Eaton motor circuit breaker and is equipped with a high-quality motor integrated pump. The oil flow is stable, the equipment noise is low, the reliability is high, and the equipment is not prone to failure during long-term continuous operation.
Suitable for online precision filtration of industrial oils such as equipment lubrication systems, hydraulic systems, and servo systems.

Chat Now Contact

Details Technical Parameters Related Products

Details

Technical advantages:
 Use high-precision filter element.
 Suitable for precision filtration of various large and medium-sized equipment.
 Remove various pollutants that cannot be removed by general filters.
1. Remove solid inclusions in general micron units.
2. Remove moisture (condensed water generated by temperature difference).
3. Remove and inhibit the generation of oxides.
 Remove bubbles in hydraulic and lubricating oil circuits (optional configuration).
 Easy maintenance.

Bring benefits:
 Prevent hydraulic machinery failures.
 Improve the reliability of mechanical equipment operation.
 Extend the life of hydraulic machinery.
 Reduce manpower and management costs.
 Keep oil products clean for a long time.
 Significantly reduce grease costs.

Technical Parameters

Product model	OURUN-KOR-101C
Filtering precision	NAS1638 ≤ Level 5
Motor power( Kw)	0.09
Working voltage	AC380V 50Hz 3 phase 4 wires
Motor protection level	IP44
Flow（L/min）	3
Pump relief pressure	0.5MPa
Entrance and exit	Rc3/8
Use filter model	YSO100
Number of filter elements used	1
Overall dimensions(mm)	*L401W364H483*
Weight(KG)	26.5
Applicable oil volume station（mᵌ）	≤0.8
Applicable viscosity（cst）	≤68
