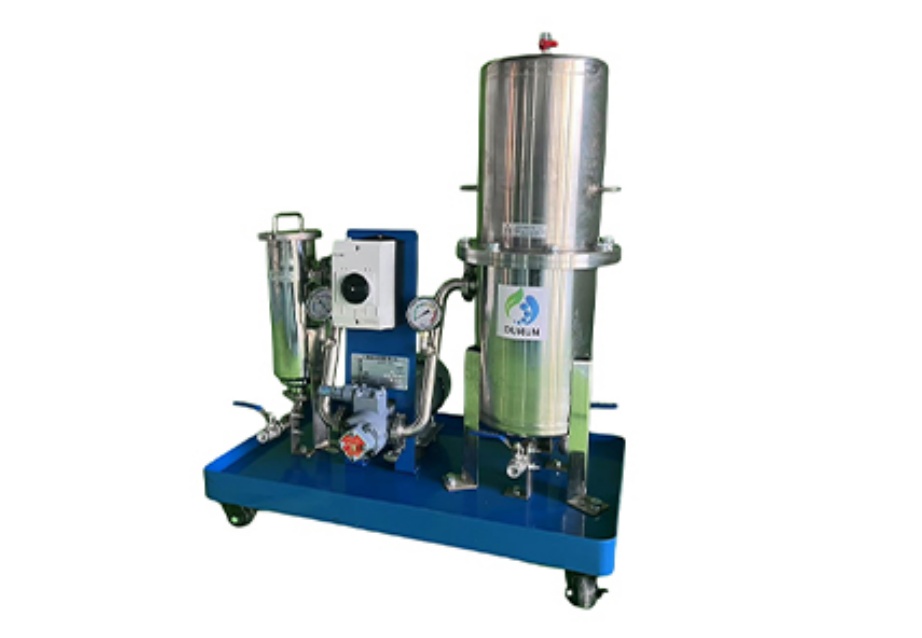

High-efficiency oil dehydrator

share to:

This product occupies a small space, easy to move. The core purification tank and pipe are made of stainless steel 304, with high precision filter element. The electrical system adopts the international brand Eaton motor circuit breaker, equipped with high quality motor integrated pump, the oil flow is stable, low equipment noise, high reliability, long-term continuous operation of the equipment is not easy to fail. Suitable for equipment lubrication system, hydraulic system, servo system and other industrial oil on-line precision filtration.

Chat Now Contact

Details Technical Parameters Related Products

Details

Use high-precision filter element.
Suitable for precision filtration of various large and medium-sized equipment.
Remove various pollutants that cannot be removed by general filters.
4. Remove solid inclusions in general micron units.
5. Remove moisture (solidified water generated by temperature difference).
6. Remove and inhibit the generation of oxides.
Remove bubbles in hydraulic and lubricating oil circuits (optional configuration).
Easy maintenance.

Bring benefits:
Prevent hydraulic machinery failures.
Improve the reliability of mechanical equipment operation.
Extend the life of hydraulic machinery.
Reduce manpower and management costs.
Keep oil products clean for a long time.
Substantially reduce grease costs.

Technical Parameters

Product model	OURUN-KOR-104C
Filtering precision	NAS1638 ≤ Level 5
Motor power( kW)	0.4
Working voltage	AC380V 50Hz 3 相 4P
Motor protection level	IP44
Flow（L/min）	12
Pump relief pressure	0.5MPa
Entrance and exit	Rc1/2
Use filter model	YSO100
Number of filter elements used	4
Overall dimensions(mm)	L760W400H910
Weight(KG)	57
Applicable oil volume station（mᵌ）	≤3
Applicable viscosity（cst）	≤68
