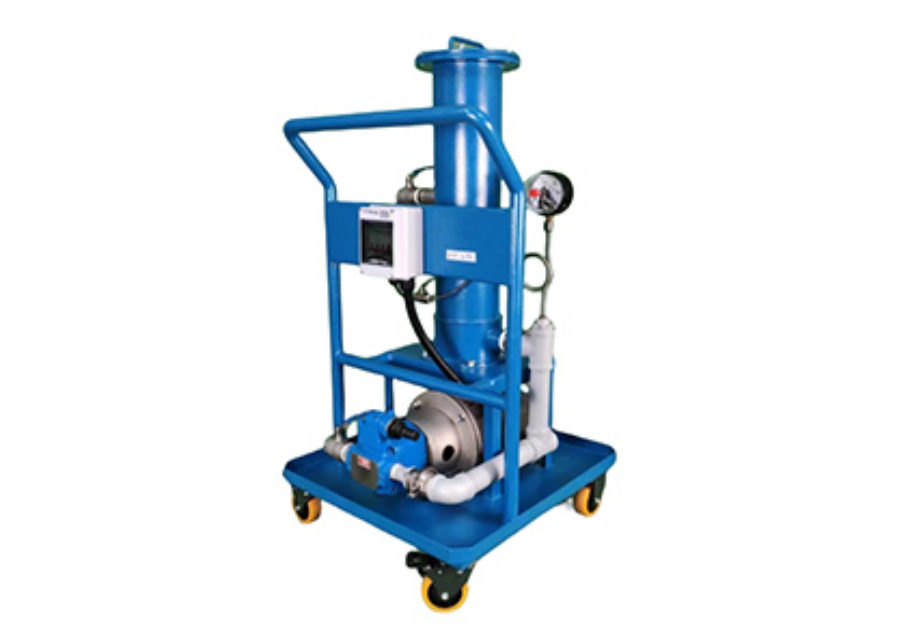

This product is designed for places such as gas stations where a large amount of oil needs to be added. The product occupies a small space, is easy to move, and the whole machine adopts an anti-corrosion design.
Applicable oils: hydraulic oil, gear oil, turbine oil, insulating oil, compressor oil and other lubricating oils, and corrosive oils such as phosphate ester oil and water glycol oil are also applicable.
Technical advantages:
High-power motor pump design, high working efficiency;
The whole series of products have a variety of filtration precisions to choose from;
The cover of the precision filter tank is locked and sealed with a V-shaped clamp, which is convenient for disassembly and assembly;
The whole machine adopts a vertical structure to save storage space;
Pure physical purification, extending the service life of the oil;
The filter element has a large filtration area, high dirt holding capacity and long service life;
An oil collection tray is provided at the bottom to prevent oil from dripping onto the ground and causing environmental pollution;
| Product model |
OURUN-JYL-50(20) |
|
Motor power( Kw) |
1.1 |
|
Working voltage |
AC380V 50Hz 3 phase 4P |
|
Flow（L/min） |
50 |
|
Pump relief pressure |
0.5MPa |
|
Entrance and exit |
Ø32 |
|
Number of filter elements used |
1 |
|
Oil temperature |
20-60℃ |
|
Ambient temperature |
0-45℃ |
|
Overall dimensions(mm) |
L670*W625*H1228 |
|
Weight(KG) |
86 |
|
Note: The standard filtration precision of this product’s filter element is 20um |
|
