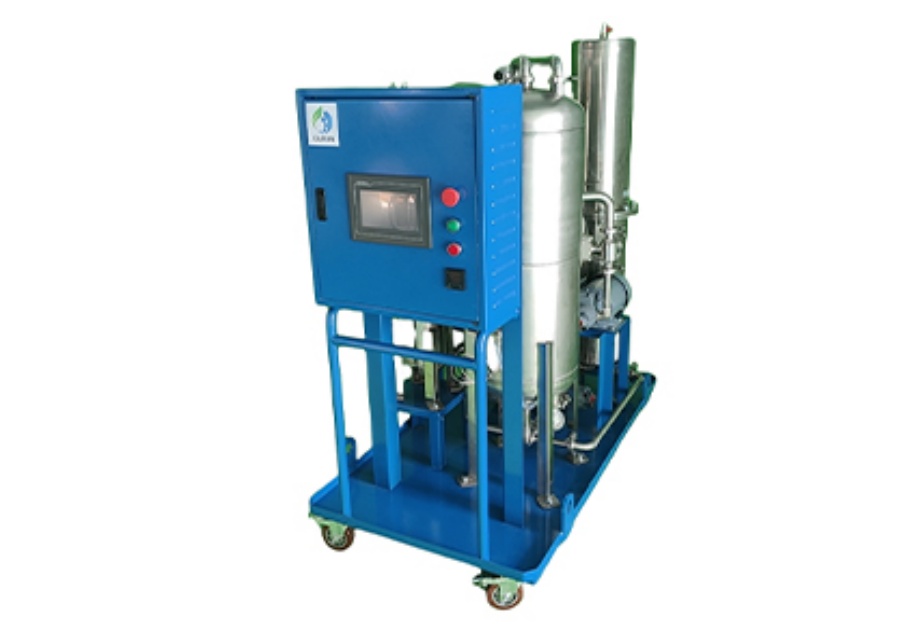

Transformer oil filtration machine

share to:

This equipment is specially designed for oil products with high requirements for water content and cleanliness. The system removes water from the oil through a vacuum oil filter, and then passes through a matching high-precision filter element to achieve the filtering effect of removing water and impurities at the same time.
This series of products has high water removal efficiency and good impurity removal effect. It is widely used in lubricating oils such as hydraulic oil, gear oil, turbine oil, transformer oil, compressor oil, etc.

Details

Advantages:
 Water removal capacity: free water: 100%, bubbles in oil: 100%, dissolved water: 80%;
 It can also easily handle high viscosity oil products, and can handle viscosity up to 680cst;
 It adopts PLC intelligent control;
 It has high water removal efficiency, and the water content after treatment is ≤50ppm;
 It adopts precision filter element, which has good impurity removal effect, and the cleanliness level after treatment can reach NAS1638 5-7 level;
 All pipelines and vacuum tanks are made of 304 stainless steel;

Bring benefits:
Prevent hydraulic machinery failure
Improve the reliability of mechanical equipment operation
Extend the life of hydraulic machinery
Reduce manpower and management costs
Keep oil clean for a long time
Substantially reduce grease costs

Technical Parameters

Product model

OURUN-KORS-308C

Filtering precision

NAS1638 ≤Level 5

Moisture content

≤50ppm

Voltage

AC380V 50Hz

Vacuum pump power

1.25kW

Oil pump power

suction pump 0.75kW

discharge pump 0.75kw

Use filter model

YSO100

Number of filter elements used

8

Flow(L/min)

30

Heater(kw)

12(Optional)

Entrance and exit

Oil inlet Rc1·1/4

Oil outlet Rc1

Adapt to viscosity(cst)

68

Overall dimensions

1340*730*1550

Weight(Kg)

290

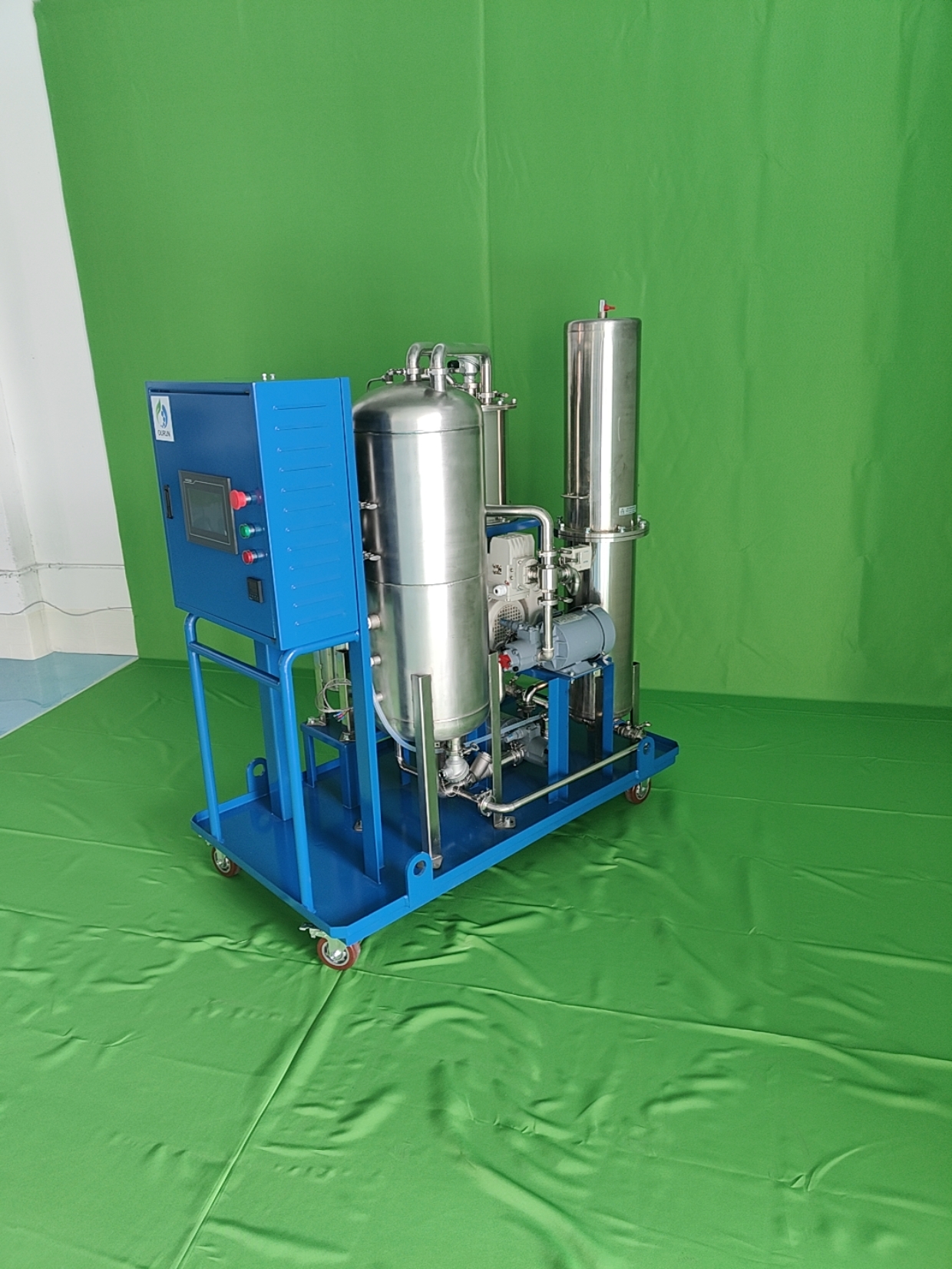

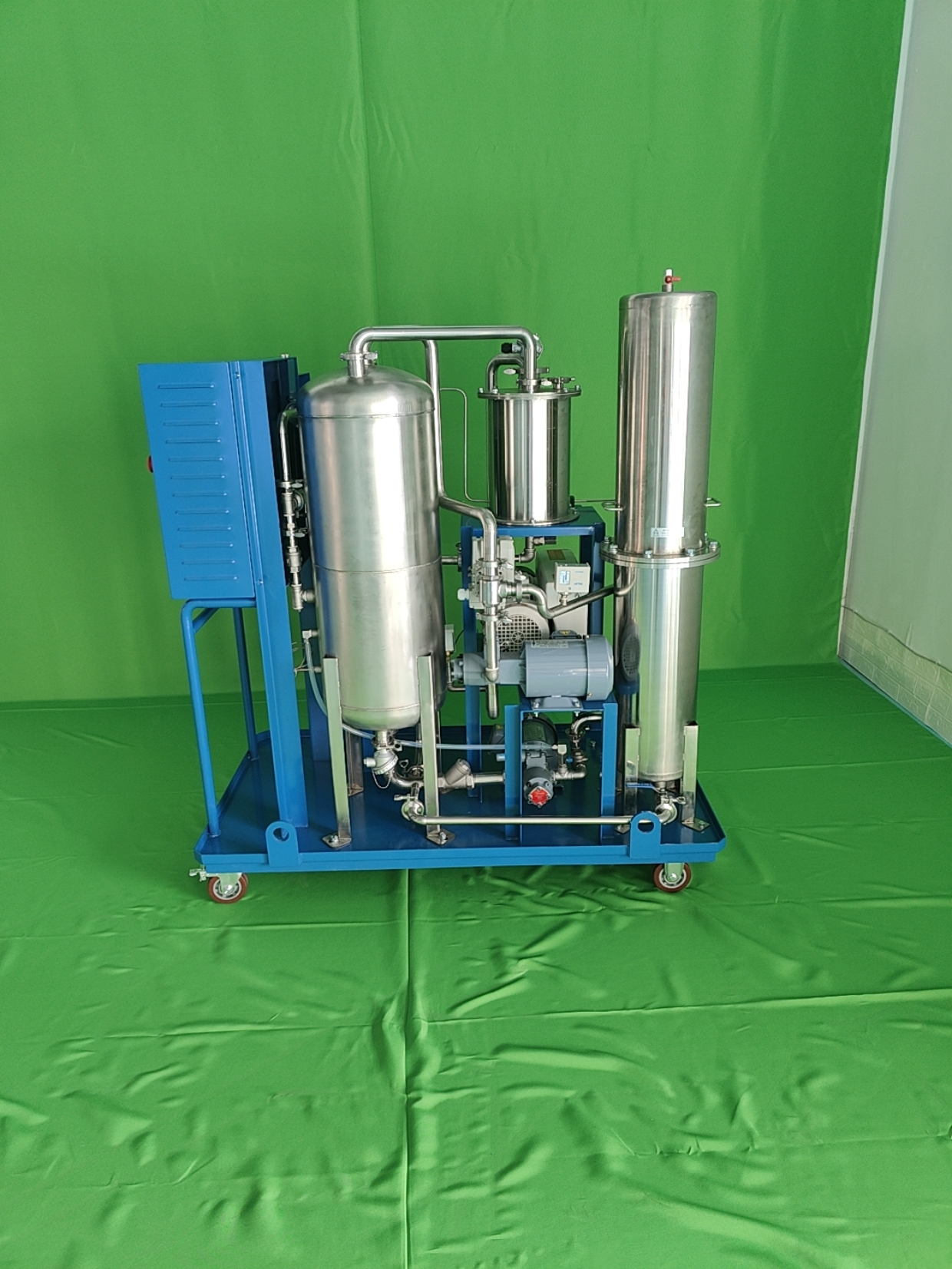

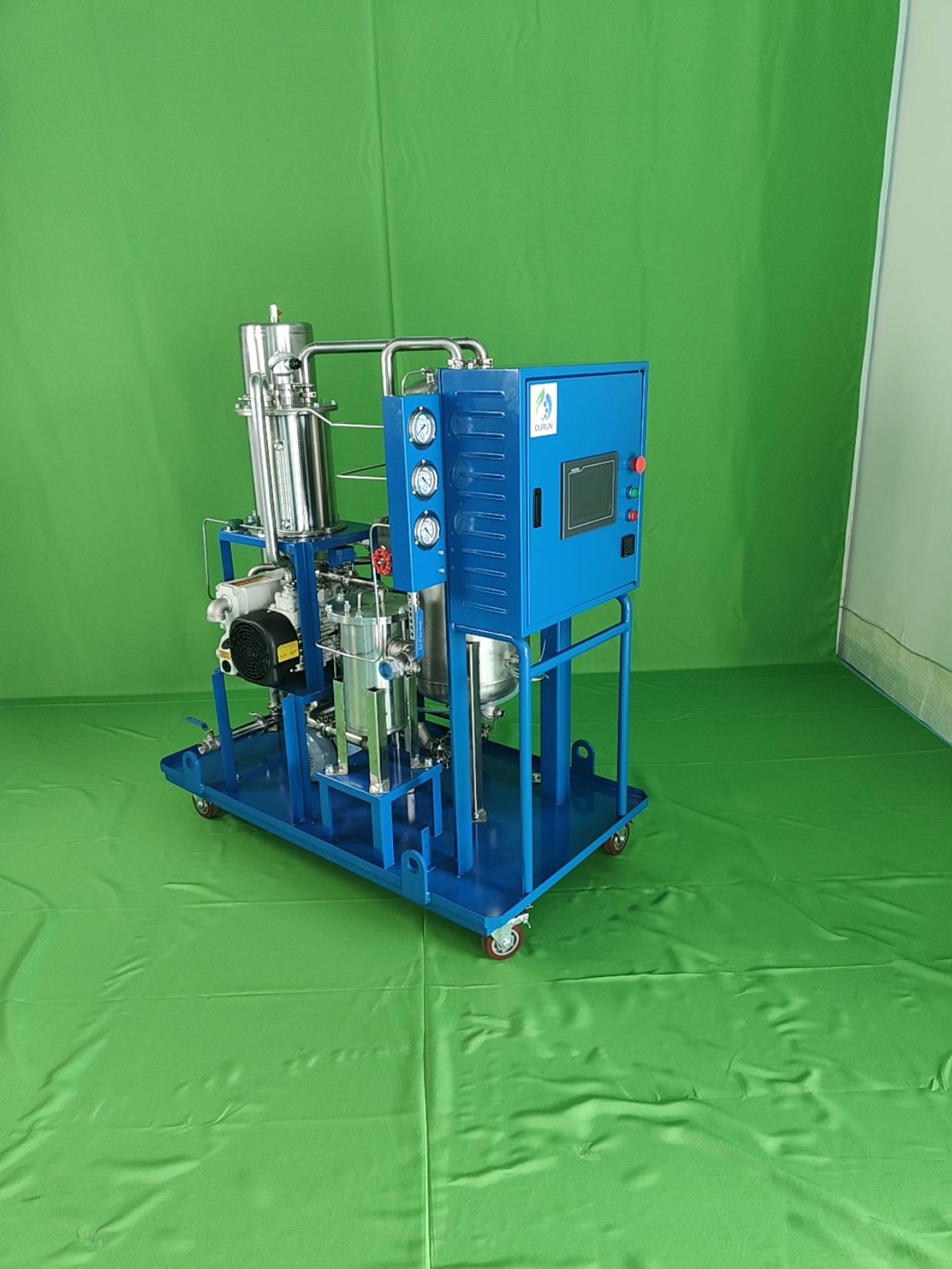

picture album
