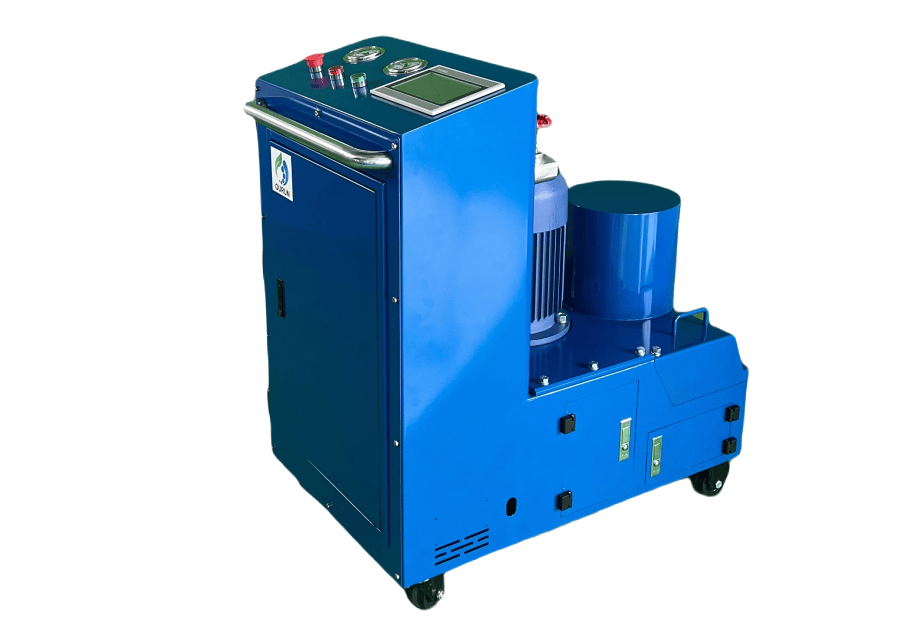

This product is designed based on the centrifugal vacuum principle and is a device that can remove solid suspension, water and air from the oil. It is suitable for online filtration of industrial oils such as equipment lubrication systems and hydraulic systems.
Technical advantages:
PLC intelligent control system is adopted;
Automatic drainage device is equipped to reduce labor costs;
Vacuum centrifugal composite principle is adopted, and there is no filter material consumption;
Large dirt holding capacity, the dirt holding capacity of the centrifugal bucket is greater than 1kg;
Wide range of application, suitable for oil purification operations with oil viscosity of 1~680mm2/s;
Benefits are brought
Prevent hydraulic machinery failure
Improve the reliability of mechanical equipment operation
Extend the life of hydraulic machinery
Reduce manpower and management costs
Keep oil products clean for a long time
Significantly reduce oil costs
|
Product model |

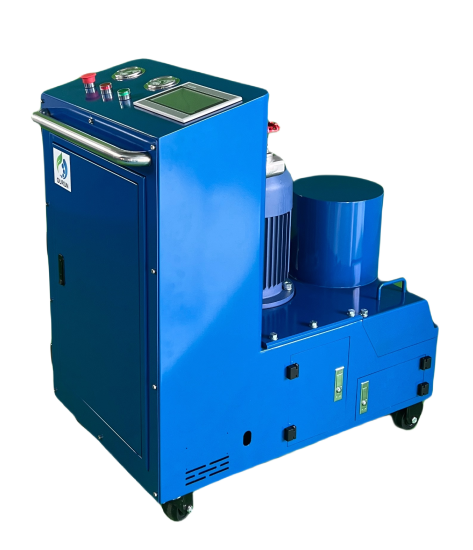

OURUN-KOR-60S |
|
|
Purification effect |
NSA1638 Level 5-7 (will vary according to actual working conditions) |
|
|
Moisture content |
≤0.010% |
|
|
Gas content |
No free gas |
|
|
Applicable viscosity（cst） |
≤680 |
|
|
Maximum outlet pressure |
≥0.3MPa |
|
|
Egress traffic （L/min） |
46#Hydraulic oil |
≥60 |
|
32#Hydraulic oil |
≥90 |
|
|
Import pressure（MPa） |
≥-0.02 |
|
|
Dirt holding capacity |
≥1kg |
|
|
Working voltage |
AC380 50Hz 3 phase |
|
|
Motor power |
4kW |
|
|
Main motor rated speed (rpm) |
2800 |
|
|
Centrifuge barrel speed (rpm/min) |
8000 |
|
|

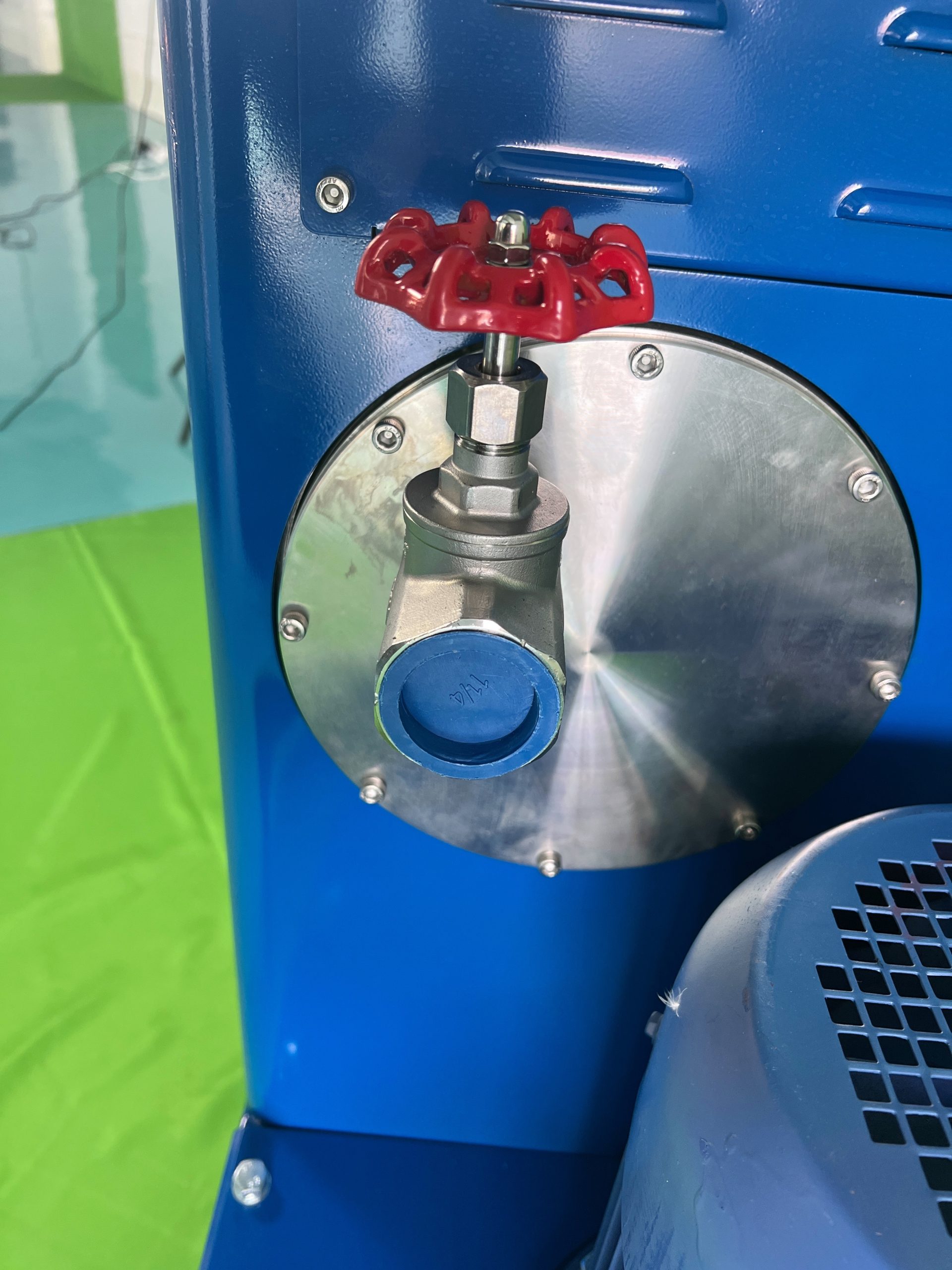

Oil inlet size |
1.2 inches |
|
|
Oil outlet size |
1 inch |
|
|
Drain size |
Rc3/8 |
|
|
Overall dimensions |
L880*w474*H1082 |
|
|
Overall machine weight |
218kg |
|
