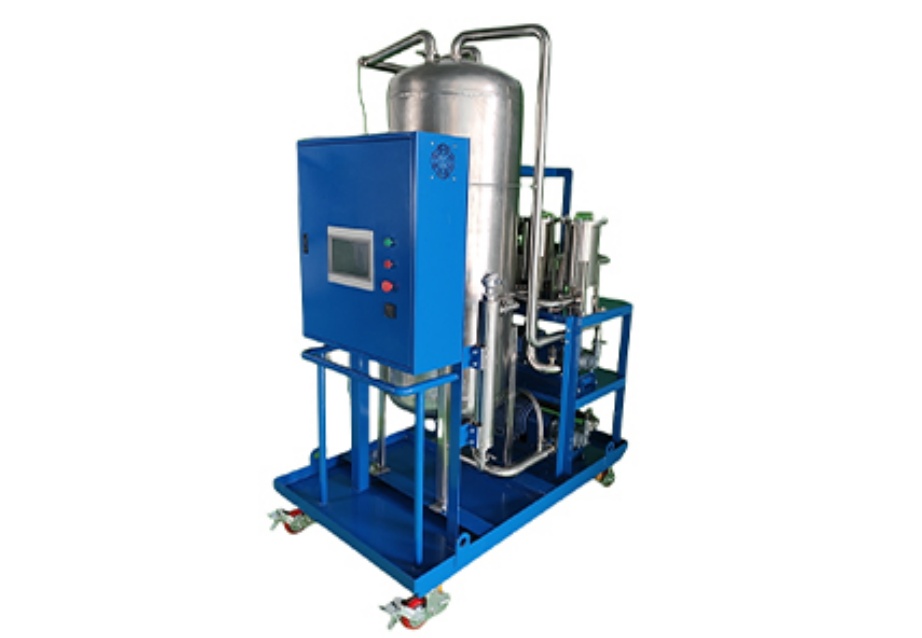

Mobile vacuum oil filter for industrial sites

share to:

This product is designed for the working condition of large amount of water inflow in gas station. The system passes the oil through vacuum environment, and the water is automatically gasified and discharged from the oil.
This series of products has high water removal efficiency. It is widely used in lubricating oils such as hydraulic oil, gear oil, turbine oil, transformer oil, compressor oil, etc. It is suitable for the working condition of large amount of water inflow in oil products of large gas stations such as equipment lubrication system and hydraulic system.

Details

Details:
 Water removal capacity: free water: 100%, bubbles in oil: 100%, dissolved water: 80%;
 High viscosity oil can also be easily handled, and can handle viscosity up to 680cst;
 The product adopts PLC intelligent control;
 High water removal efficiency, water content after treatment ≤50ppm;
 Heater is optional;
 All pipelines and vacuum tanks are made of 304 stainless steel;

Bring benefits
Prevent hydraulic machinery failure.
Improve the reliability of mechanical equipment operation.
Extend the life of hydraulic machinery.
Reduce manpower and management costs.
Keep oil clean for a long time.
Substantially reduce grease costs.

Technical Parameters



Product model

OURUN-KORS-70

Moisture content

≤50ppm

Voltage

AC380V 50Hz

Adapt to viscosity

10~680cSt

Vacuum pump power

3kW

Oil pump power

suction pump 2.2kW

discharge pump 4kw

Flow(L/min)

70

Heater(kw)

30(Optional)

Entrance and exit

Oil inlet Rc2

Oil outlet Rc2

Applicable oil volume station(mᵌ)

18

Applicable viscosity(cst)

680

Overall dimensions(mm)

1650*1000*2200

weight(Kg)

800
